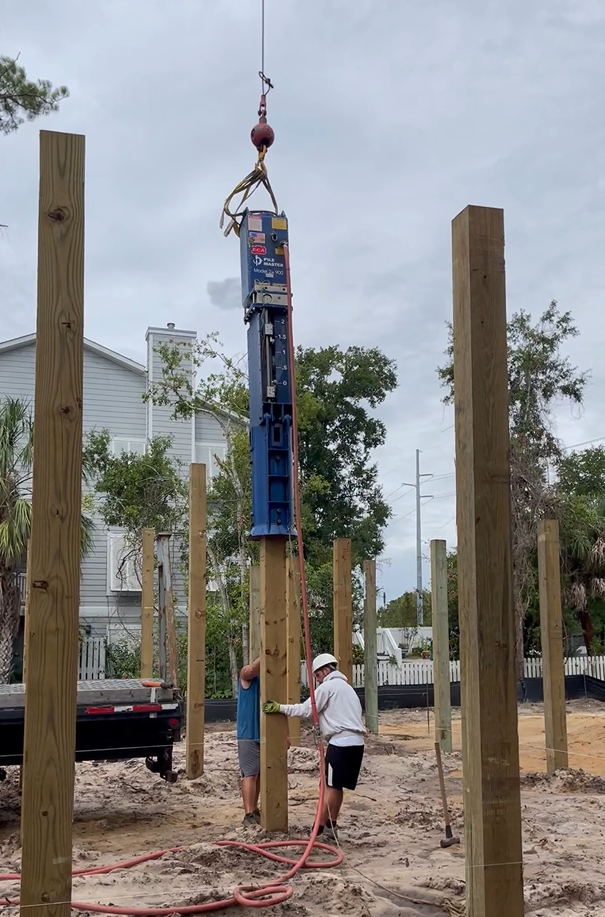

Engineered for versatility and built for demanding jobsites, Pile Master air hammers are designed for a range of pile driving projects. The model 24-900 hammer is driving timber and vinyl/fiberglass piles. With a total weight of only 2,300 lbs. the Pile Master 24-900 delivers up to 1,800 ft. lbs. of energy, making it a great choice for driving piles with limited equipment lifting capacity. The 24-900 is known for its efficiency, producing up to 90% energy transfer into the pile while using an air compressor as small as 185 CFM.
Specifications
| Ram Weight (lbs) | 900 lbs |
| Total Hammer Weight (lbs) | 2,300 lbs |
| Stroke (in) | 6″ – 24″ |
| Energy Rating (ft lbs) | 450 – 1,800 ft lbs |
| Blows per Minute | 16 – 60 |
| Recommended Air @ PSI | 185 cfm @ 125 psi |
| Length of Hammer (in) | 126″ |
See it in action!
Key Features
Purpose built for lightweight applications.
Up to 90% Energy Transfer Efficiency
More of your input energy goes directly into driving the pile. This means faster penetration, fewer blows, and improved overall jobsite productivity.
Lower Operating Costs
Reduce fuel consumption compared to diesel hammers while minimizing maintenance requirements. Less wasted energy and fewer wear components translate into real savings over the life of the equipment.
Operator-Friendly Control
Smooth, controlled operation allows for better accuracy and improved jobsite safety. Operators can maintain precision while maximizing efficiency in demanding environments.
